IntroductionIn industries such as electronics, semiconductors, and precision optics, precision etching technology plays a decisive role in product miniaturization and reliability.

Key components such as OLED evaporation masks (FMM), vapor chambers (VC heat spreaders), and encoder grating discs require extremely high dimensional accuracy. Their processing quality directly impacts:
·Display resolution and yield in OLED panels
·Thermal performance of high-end chips
·Positioning accuracy in motion control systems

As a professional manufacturer of metal etching equipment, Dongguan Huazhou Machinery Technology has conducted in-depth research into industry benchmarks and leading companies’ process standards.In this article, we break down the core process logic and equipment parameters required to achieve high-precision metal etching.

1. Precision Etching Technology: The Limits of Wet EtchingMetal etching is mainly divided into wet etching and dry etching.For mass production of thin metal parts (0.03–1.0 mm), wet etching remains the dominant solution due to:
·High selectivity
·Fast etching rate
·Lower cost

Typical Precision Capability Benchmark

Material Thickness (T)	General Tolerance (CD）	High Precision Tolerance	Min Feature Size
0.03-0.05mm	±0.03mm	±0.005mm	0.03-0.05mm
0.06-0.15mm	±0.03mm	±0.015mm	100%*T
0.16-0.30mm	±0.03mm	Case-dependent	00%*T
0.31-1.00mm	±10%*T	±0.03mm	100%*T

Huazhou Insight

To consistently achieve ±0.005 mm tolerance, traditional etching systems are no longer sufficient.
This requires breakthroughs in:

· Etching uniformity

· Temperature control

Mechanical transmission stability

2. Core Process Breakthroughs: How Huazhou Meets High-End Requirements

Based on application scenarios such as FMM masks, vapor chambers, and encoder discs, Huazhou’s high-precision etching machines achieve key technological breakthroughs:

---

2.1 OLED Mask Half-Etching Process (FMM)

OLED masks require half-etched structures to form:

• Taper angles: 30–70°
• Step structures for deposition control

Process Challenges:

• Alignment accuracy: ±50 μm
• Etching depth control: 10–40 μm

Huazhou Solution:

• High-precision CCD alignment system
• Real-time depth monitoring and feedback
• Strict proportional control between width and depth

👉 Example: 20 μm depth → ≥400 μm transition width

This ensures no over-etching or under-etching, critical for OLED yield.

2.2 Thick Plate Etching for VC & Encoder Discs

For materials like 0.2–1.0 mm stainless steel or copper alloys, the main issue is:

👉 Undercut (lateral etching)

Technical Requirements:

• Undercut ≤ 10% of thickness
• Minimum spacing ≥ 0.30 mm

Huazhou Solution:

• Independent dual-side spray pressure control
• Optimized fluid dynamics simulation
• Etching Factor > 3

👉 For 0.5 mm VC plates:

• Achieves ±0.03 mm positional tolerance (TP)
• Significantly reduces side etching

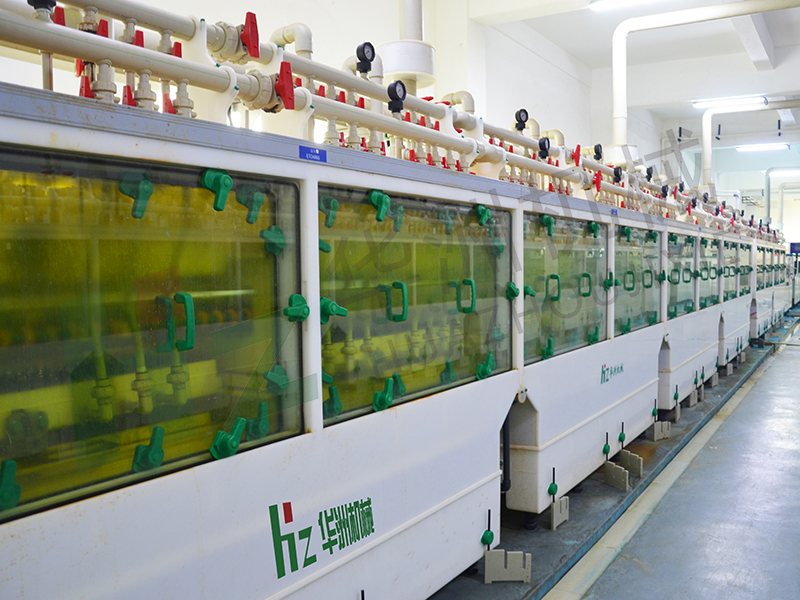

3. Why Choose Huazhou Metal Etching Equipment?

Huazhou’s systems are specifically designed for high-precision component manufacturers:

1. High-Uniformity Spray System

• Fan-shaped nozzle array + oscillation mechanism
• Uniformity across panel: ±3%
• Ensures edge-to-center consistency

2. Intelligent Temperature & Chemical Management

• Real-time monitoring and auto-replenishment
• Temperature control accuracy: ±0.5°C
• Stable for long-term continuous production

3. Customized Process Solutions

We provide full-process solutions for:

• High-precision metal masks
• Vapor chambers
• Encoder grating discs

👉 Covering etching + cleaning + stripping + drying

4. Application Cases: From OLED to Industrial Automation

High-Precision Metal Mask Etching Machine

• Thickness: 0.03–0.15 mm
• Tolerance: ±0.005 mm
• Used in OLED mask production

Vapor Chamber Precision Etching Equipment

• Thickness: 0.3–0.8 mm
• Microchannel structure
• Minimum line width: 0.25 mm

Encoder Grating Disc Etching Machine

• Slit tolerance: ≤ ±0.015 mm
• Improves signal stability

Conclusion

Precision etching technology is evolving toward:

• Finer structures
• Thicker materials
• More complex 3D geometries

From OLED masks to VC microchannels and encoder discs,
the foundation lies in:

✔ Equipment precision
✔ Process stability
✔ Advanced control systems

About Huazhou

Dongguan Huazhou Machinery Technology Co., Ltd. is committed to developing high-precision metal etching equipment aligned with global industry standards.

We provide reliable and advanced etching solutions for:

• Semiconductors
• Consumer electronics
• Thermal management
• Automotive components

👉 Contact Huazhou’s engineering team today
to get:

• Customized etching equipment solutions
• Free process evaluation
• Sample testing service
